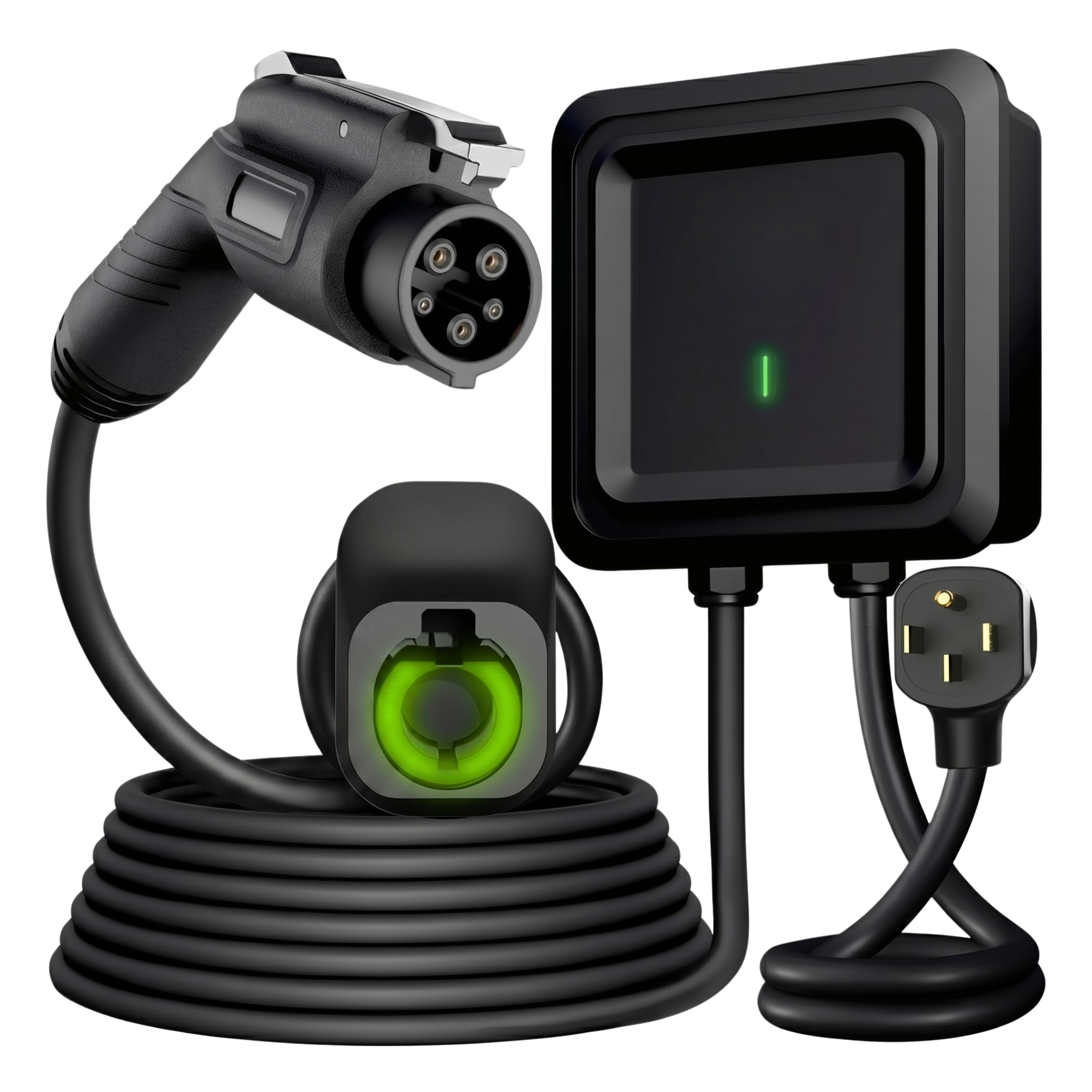

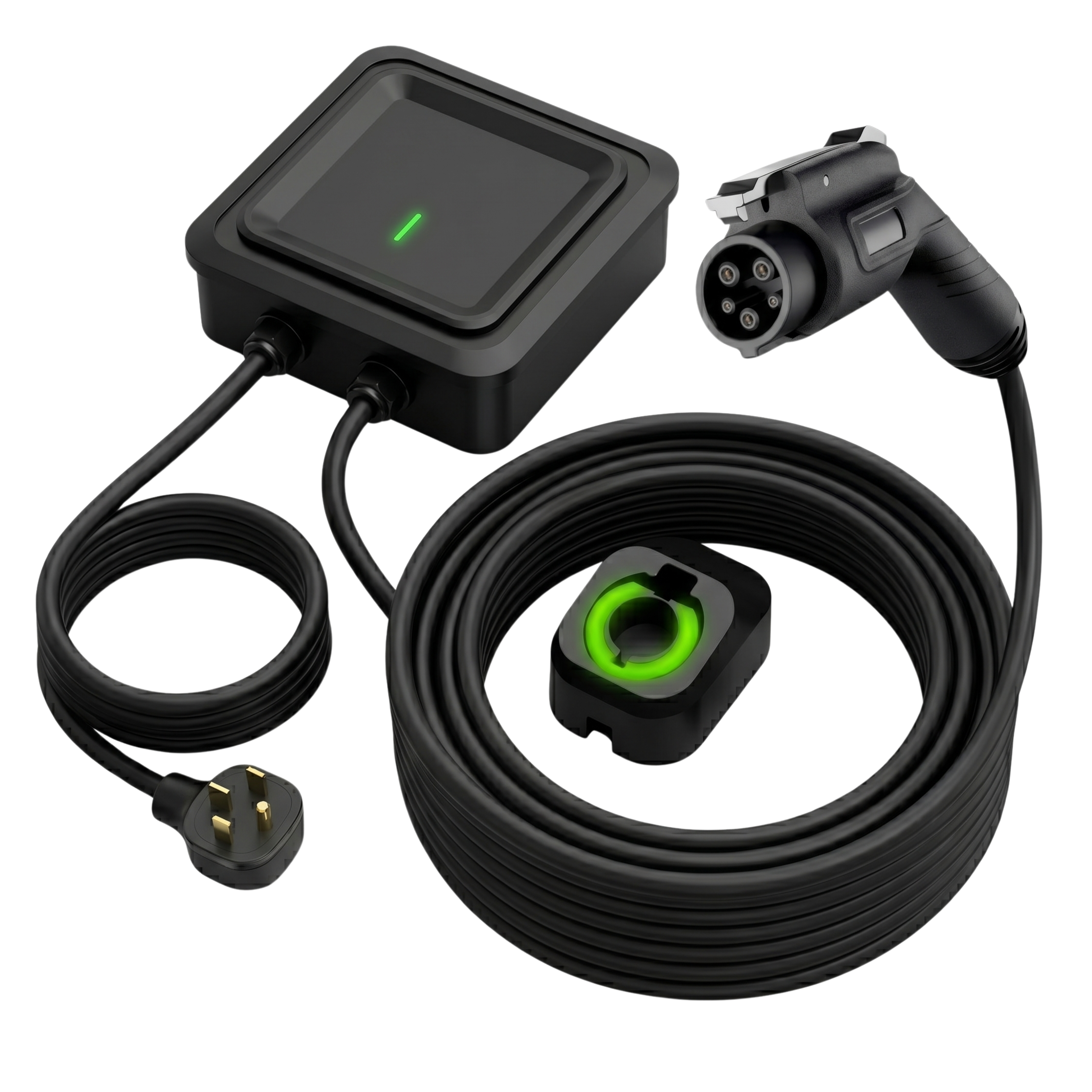

Level 2 EV Charger 40A 240V J1772 25ft Cable Indoor Outdoor IP66

Plug In. It Delivers.

This Level 2 EV charger operates at 240V with a maximum output of 40 amps, delivering up to 9.6 kW through a J1772 connector. The unit connects to a NEMA 14-50 receptacle and is compatible with 40A or 50A circuits. The enclosure uses a sealed housing rated IP66 and NEMA 4, with internal steel shielding around the control board. A 25 ft cable provides reach from the mounting location to the vehicle inlet.

Set It Your Way, Every Time

The charger converts AC input from a 240V outlet into regulated current delivery through the SAE J1772 interface. Output current can be set between 6A and 40A via a 2.4 GHz WiFi-connected mobile application. The system allows scheduling of charging sessions and tracks energy usage in kWh. The unit includes an integrated reset button for manual restart without disconnecting the power supply.

Mount It. Plug It. Done.

The charger uses a plug-in configuration with a NEMA 14-50 connector, requiring no hardwiring when paired with a compatible outlet. The unit can be wall-mounted in a garage or on an exterior surface using standard mounting hardware. A fluorescent holster is included for cable and connector storage when not in use. The cable remains flexible for coiling and placement after charging cycles.

Product Benefits:

• Adjustable Current Range: Configurable from 6A to 40A through app interface

• Extended Cable Length: 25 ft cable supports varied parking positions

• Sealed Housing Rating: IP66 and NEMA 4 enclosure for indoor or outdoor placement

• Plug-In Connection: Uses standard NEMA 14-50 outlet without fixed installation

• External Reset Access: Side reset button allows manual system restart

Specifications:

• Material: Sealed polymer housing with internal steel shielding

• Weight: 20.3 lb

• Power Source or Voltage: 240V AC via NEMA 14-50 outlet

• Operating Range or Capacity: 6A to 40A output, up to 9.6 kW

• Connection Type: NEMA 14-50 plug with SAE J1772 connector

• Placement or Use Area: Garage wall, exterior wall, driveway charging area
